702205

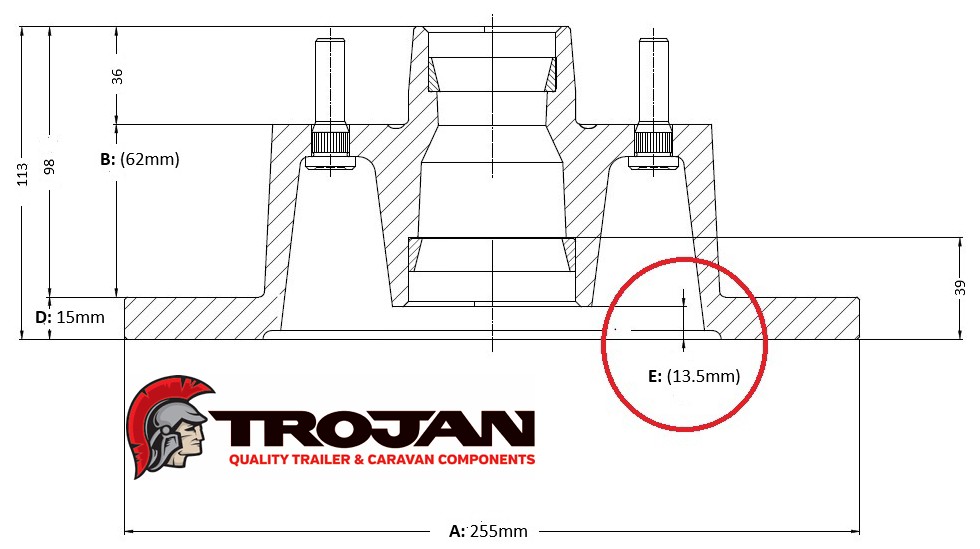

C: P.C.D 5/108mm, Stud centres 63.45mm D: Thickness 15mm
E: Inner bearing boss to rotor gap 13.5mm
The most important measurement in making sure the replacement disc hubs fit correctly on your trailer is dimension E. If we don't get this right, you'll find that the calipers don't align either side of the rotor face.
As shown above, Trojan disc hubs measure 13.5mm. Trojan also tell us that the measurement from the bearing cup machining to rotor face is critical (in this case, as above, 36mm.)
Remember, if you're not sure, ring the Guru's on
02 4969 1722
This rotor comes without bearings
For 39mm or 40mm axles use 187008 LM Marine kit
For 45mm axles use 187026 Slimline Marine kit
