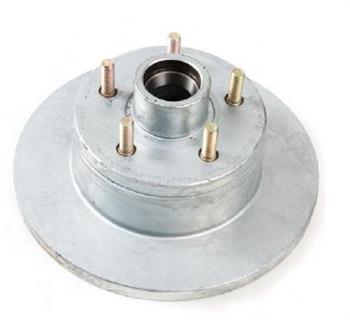

702207
A: 255mm dia B: Hat height 62mm D: Thickness 15mm
E: Inner bearing boss to rotor gap 13.5mm
The most important measurement in making sure the replacement disc hubs fit correctly on your trailer is dimension E. If you don't get this right, you'll find that the calipers don't align either side of the rotor face.
As shown above, Trojan disc hubs measure 13.5mm.
Remember, if you're not sure, ring the Guru's on
02 4969 1722
This rotor comes without bearings
For 39mm or 40mm axles use 187008 LM Marine kit
For 45mm axles use 187026 Slimline Marine kit
