182233

•

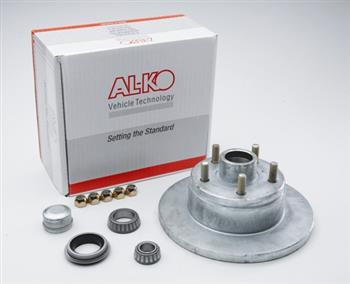

• Galvanized disc rotor 5 stud (1/2") complete with marine LM bearings  (Chinese)  (Outer LM11949 Inner LM67048) and Marine Seal to suit 39mm round or 40mm square axle.
• Stud pattern is Ford.
• C: P.C.D 5/114.3mm, Stud centres 67.18mm

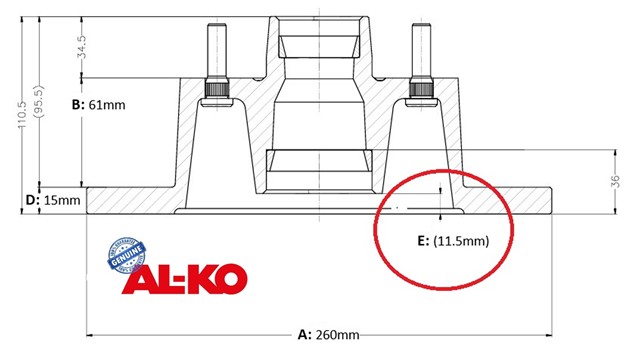

A: Diameter 260mm             B: Hat Height 55mm          D: Thickness 15mm

E: Inner bearing boss to rotor gap 11.5mm

We've discovered that the most important measurement in making sure the replacement disc hubs fit correctly on your trailer is dimension E. If we don't get this right, we find that the calipers don't align either side of the rotor face.

As shown above, ALKO disc hubs measure 11.5mm. ALKO also tell us that the measurement from the bearing cup machining to rotor face is critical (in this case, as above, 36mm.)

Remember, if you're not sure, ring the Guru's on

02 4969 1722
